DB0021 – (ZF0837) – Industrial communication – IO-Link components + Evaluation Systems

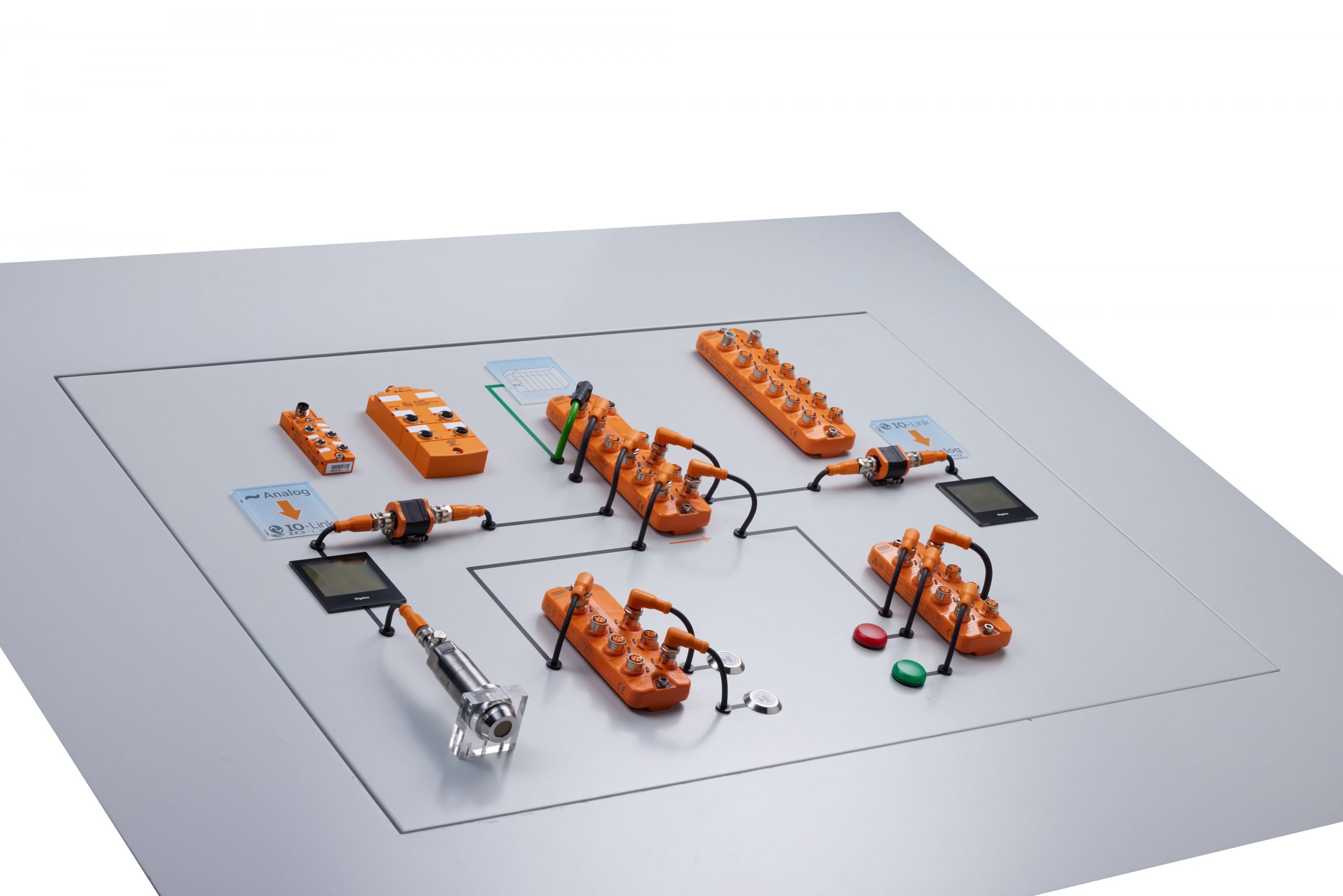

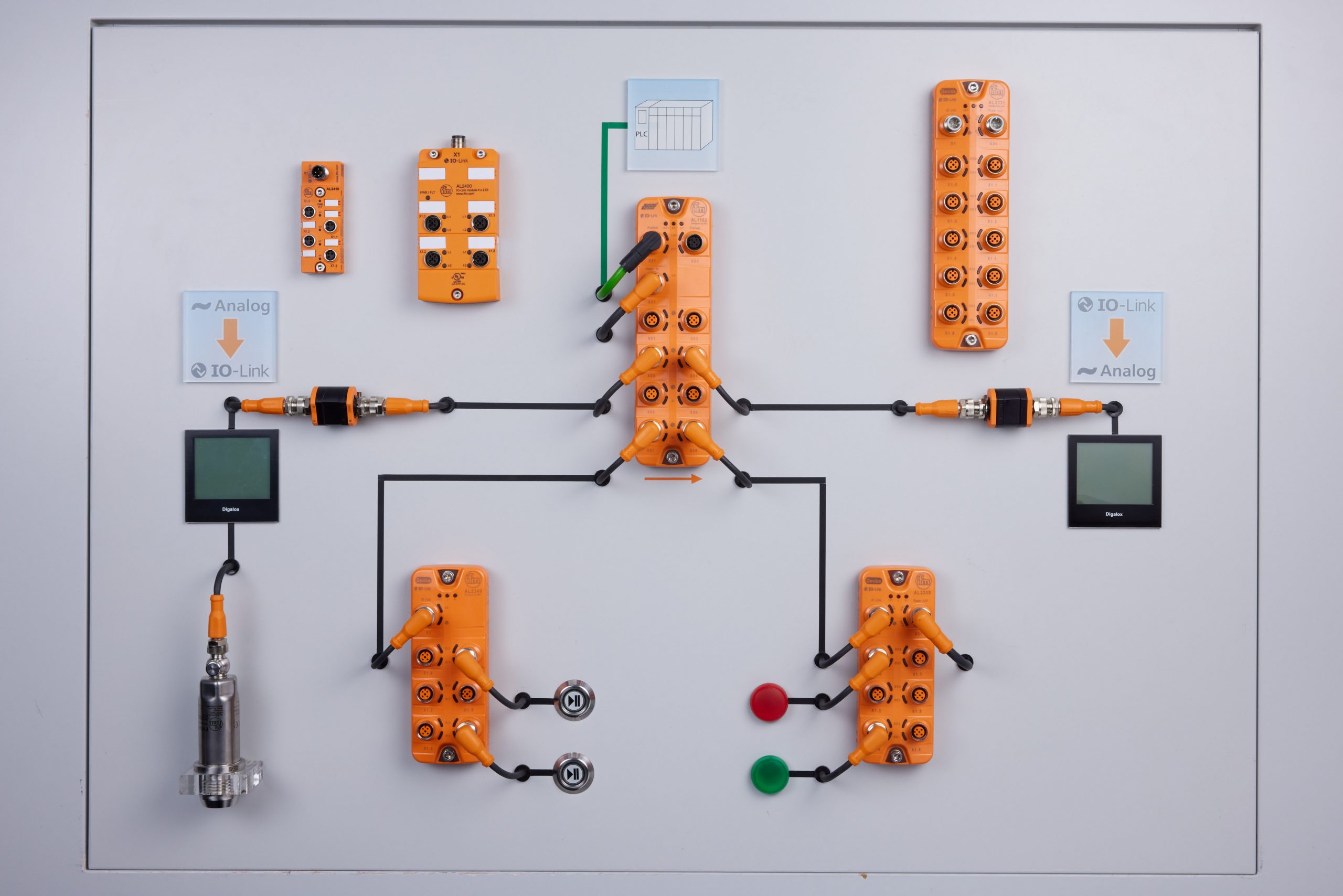

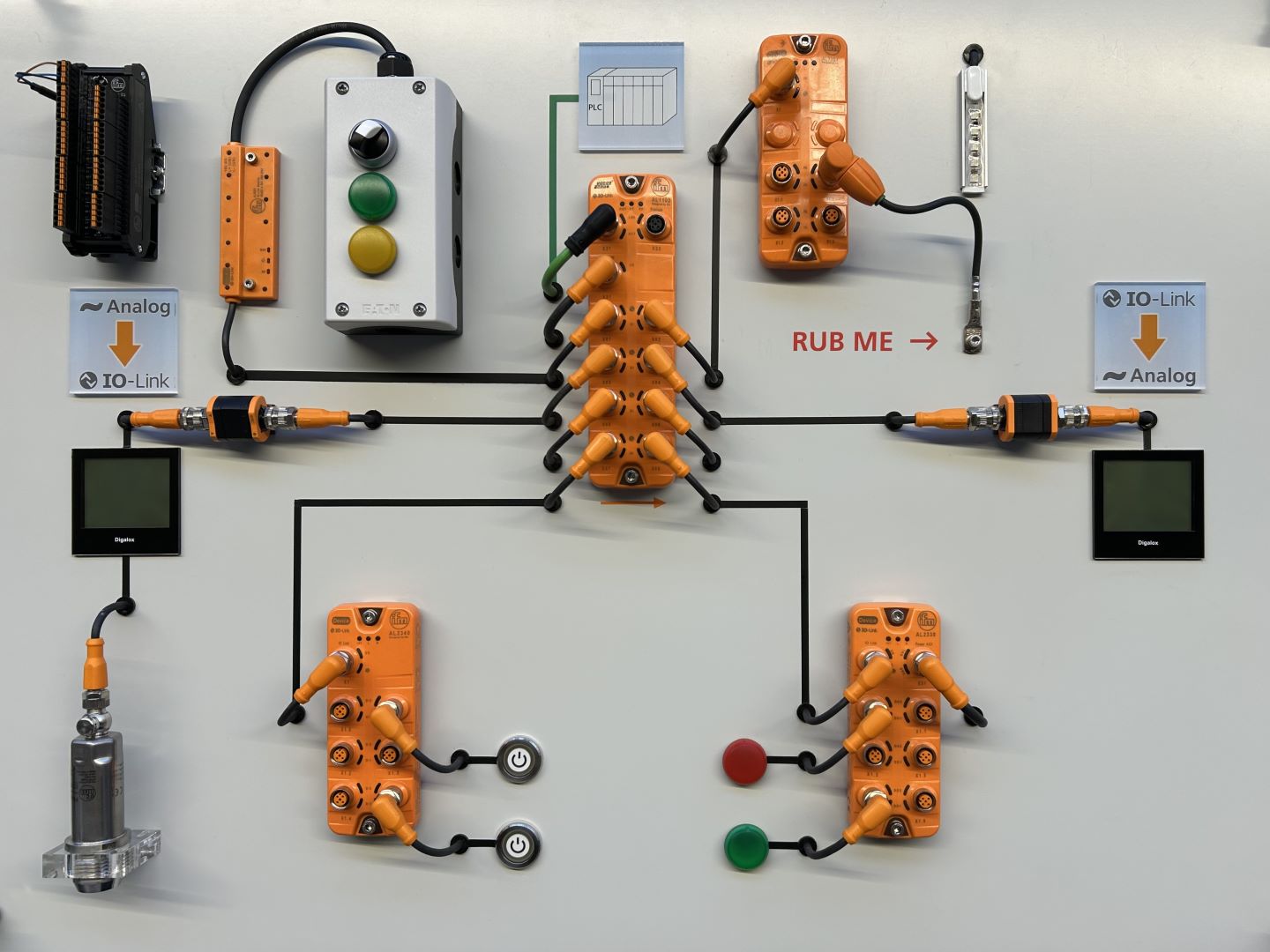

The display shows IO-Link input/output modules:

–          AL5021 with a pushbutton box used to control switches and indicator lights.

–          AL5121 (powered only)

–          AL2384 with a PT100 sensor that controls an LED strip based on temperature via a PLC on the back.

–          DP220 and DP1213 demonstrate how an analog sensor value is converted into an IO-Link signal and then back into an analog value.

–          AL2340 and AL2330, which are used to control pushbuttons and indicator lights.
